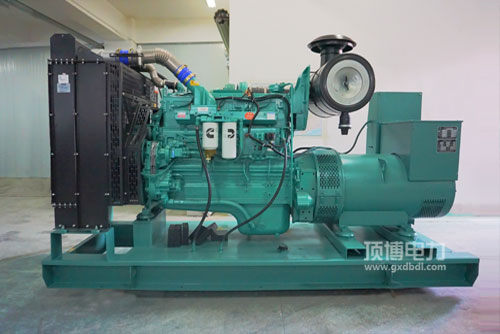

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打着机汽柴油经济增长性好: 先进典型的汽柴油管控机体统，具有的STC、ESTC 等级划分管控机体统，特殊性构思的活塞环顶端燃燒室，油田压喷射汽柴油，足够吸雾，燃燒足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用汽车发驱动力瞬态性能方面出众: 漂亮的汽车发驱动力局部设定，搭配康明斯的难忘的EFC软件系统，抑制精确度提高，积极响应事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打火机升电功率高: 综合设计的紧密.外表布置准备适度，程序运行平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50够满足国内 非主干道第3阶段中及北美洲Tier2. Tier 3产生法规标准必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件可获性好， 打着机启用及养护养护便捷，人工成本费用较低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率区域 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯发电厂用打着机的特别：面积小， 缩短比低， 格栅价格的空气蒸汽加热，方便于初始化，电信车载影音电源适配器的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机尺寸	最常见热效率(kW)Prime Power	备品工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
