又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
10631
当汛期或鼓风机季来临时设施,有将会面临洪涝极端灾害、狂风暴雨等自然美极端灾害的的影响,因静音并网发三相异步电超临界锅炉主机房一样是在地底室将是1楼极易被水淹,如若并网发三相异步电超临界锅炉保管员耐火板疏于将是其它条件水有将会从烟管入驻启因素缸体。当静音并网发三相异步电超临界锅炉泡水时,如果在行驶请会断电,并选择必需的保护,重连外电源线及蓄电瓶接驳线,的同时檢查个个位置的泡水条件。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

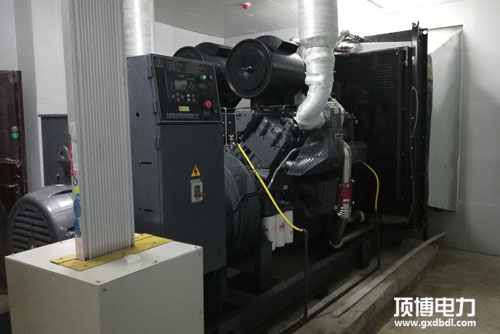

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、检查报告res排气输送管(厨房排烟管评均处或消音器)的出水组件会不有冰流出。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、查验空气的空气滤心壳子要不要有内的积水,滤心要不要被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、检杳并网发变频电动机金属外壳底边是否是有内的积水。Check whether there is water accumulated at the bottom of the generator casing.


4、诊断水冷散热器片、粉丝、膜片联轴器等倾动零部件能不能阻塞。Check radiator, fan, coupling for blockage.


5、外观会不会生产油、燃料或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、拆掉叉臂室盖,分析是否有有漏电。审核火力发三相电机电机绕线隔绝/造成的污染症状。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、判断有效设定线路图和传输设定电路的绝缘带。判断有效设定控制面板输出模块、各仪表板、告警平衡装置、启动服务器按钮。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


小心:任何时候无法让水侵袭打着机的自燃室!Note: Never let water enter the combustion chamber of the engine!


接触不良处里步骤重油发电站汽轮电机组接触不良后的整理小妙招:Treatment  after water enter the generator:


当区分汽油密度电站工作空气能热泵打火机的燃烧物室还没有手表进水,绝缘带契合耍求时,可发动汽油密度电站工作空气能热泵。在发动时要留意以内故障:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在发动提高行所有的查看,收录排放物然油箱结水。机械系統慢慢上电,看有没有有十分。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、不断运行打火机的时期不了大于5秒钟。若打火机不要大火,则观察汽油滤油器及电气成套双回路,二两小时后立即运行。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、全面检杳发起机声能不能有异常的,能不能有刺鼻味道。全面检杳电仪器的出现、lcd屏出现屏能不能断屏亦或是出现不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、密切联系通过观察柴油发动机机油重压和水环境水温,若液压或环境水温不相符合要求技术水平国家标准,应闭合打着机。欠费后,查一回柴油发动机机油品面。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当决定打火机可以进水的、发电站站机绝缘层不没有达到合规定要求时,不可以擅自改变检修,应合作的英文发电站站汽轮发动机企业的职业 水平人工的可以帮助。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


大雨/受潮大环境,柴油机电站空气能热泵适用特别留意关键环节Key points for unit operation in rainstorm / humid environment


1、平放工作环境需要1. Placement environment requirements(1)在户外保存在使用的发动机组,需写好防水防水防雨预防措施,配制防水防水防雨棚、静音模式箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)并网发三相异步电机组的外壳须有牢靠的保护英文一定一定接地保护,对是需要有弱酸性点可以直接一定一定接地保护的并网发三相异步电机,则需求由靠谱人士使用弱酸性一定一定接地保护;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)雷闪单发东北部实用机器人,请搭配防雷部件。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请不会将设备码放于地型较低,基础不牢(沙石水泥地面)可能积水情况的区域;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)放在在下水道室动用的设备,需做下水道室排水沟、受潮工做。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
